Thanks to its powerful heating/cooling technology and speed-optimized temperature control, the mounting time is significantly reduced. The robust bayonet closure, optional simple one-button operation, and clear parameter display on the 7" industrial touchscreen ensure convenient and intuitive use. The connectable, patented extraction system sets new standards in occupational safety for the user.
AR-Model - Visit the page with your smartphone or scan the QR code under "View in Room" and experience the 3D model in the real world!
Shorter mounting times are achieved by:

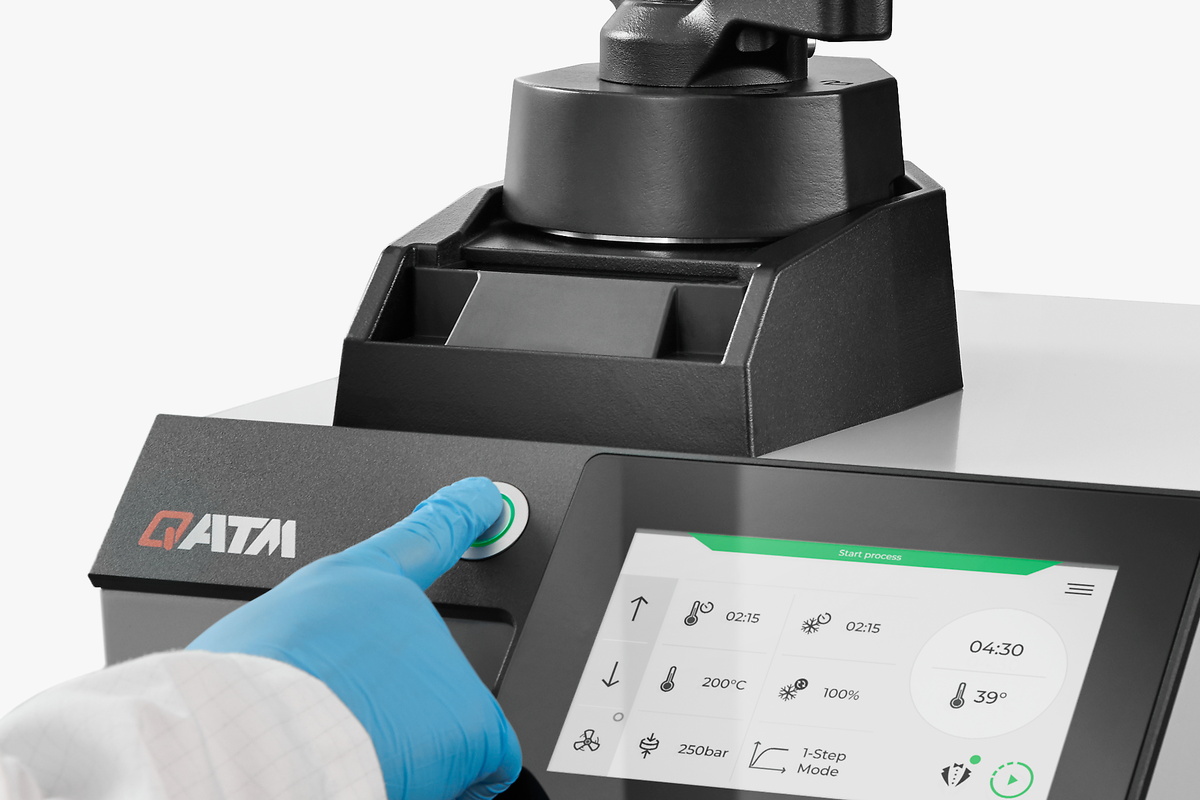

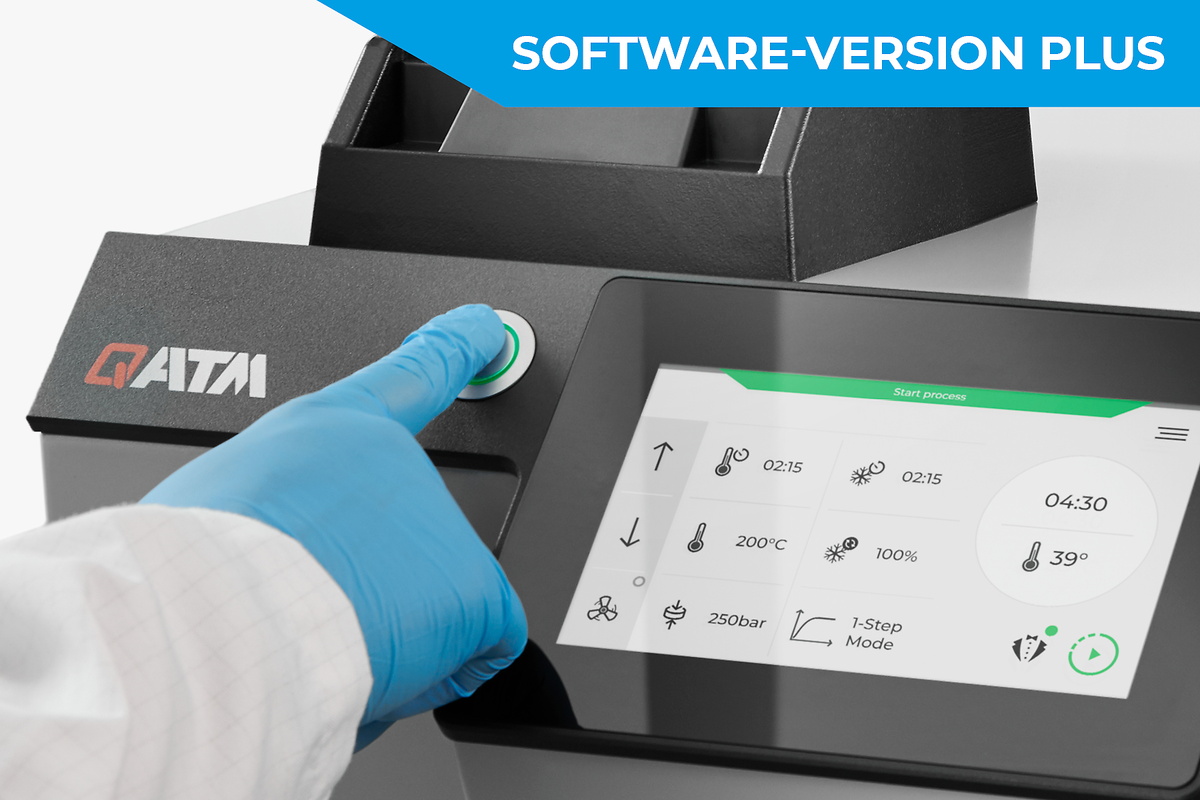

The highest possible operating safety is achieved with the butler function. In just a few steps, the entire mounting process can be controlled by pressing the multifunction button. In addition, the PLUS software has a method database with pre-installed, consumable-specific mounting recipes and allows the storage of more than 200 user-defined mounting methods. This ensures the fastest possible operation with maximum process reliability.
The patented and optional integrable suction device (Dust Guard) protects the user from inhaling dust that can escape when the mounting resin is filled into the mould. This significantly enhances health protection in the workplace. In the PLUS software version, the extraction system is automatically controlled by the software.

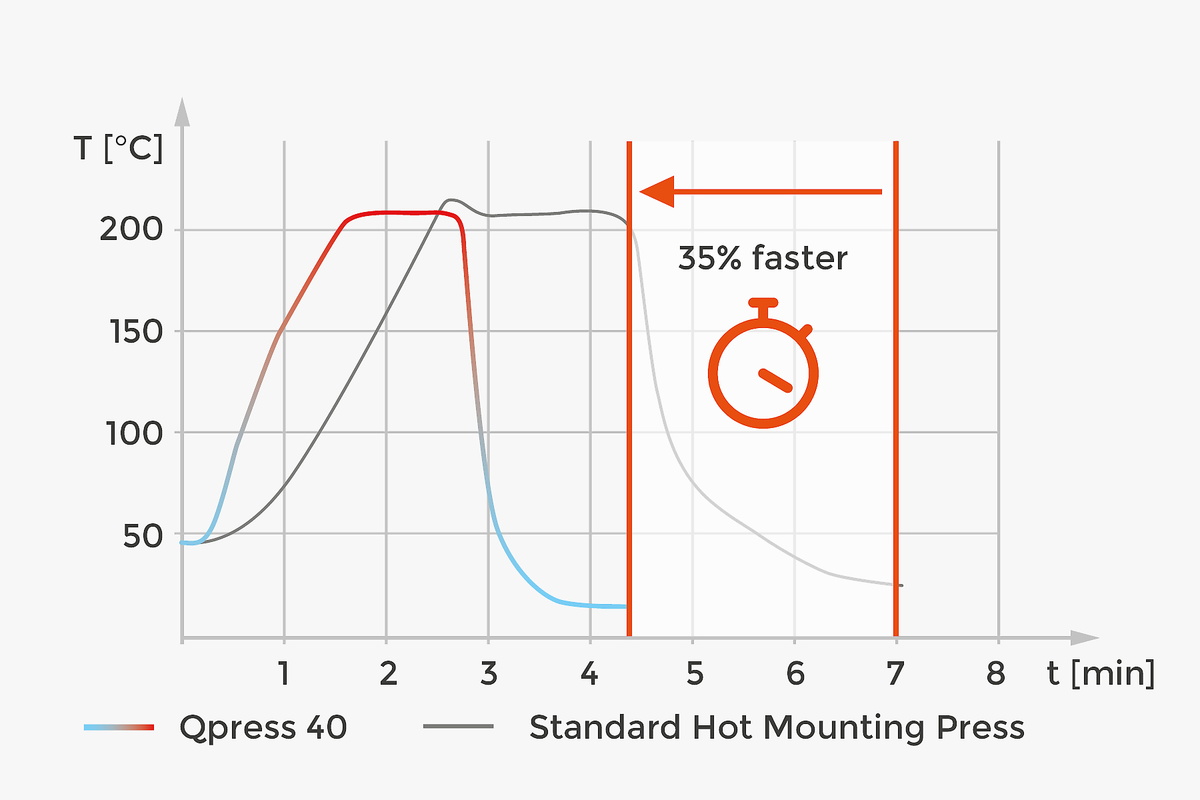

The new design of the Qpress 40 ensures the shortest possible heating and cooling times. The heating elements quickly melt the mounting resin thanks to optimized heat transfer and temperature control in the mould. During this process, the granules are compressed to the preset mould pressure. Once the set temperature is reached, the press mould is cooled as quickly as possible after a short holding time, allowing the hardened sample to be removed for further preparation. This not only saves time but also reduces energy requirements.

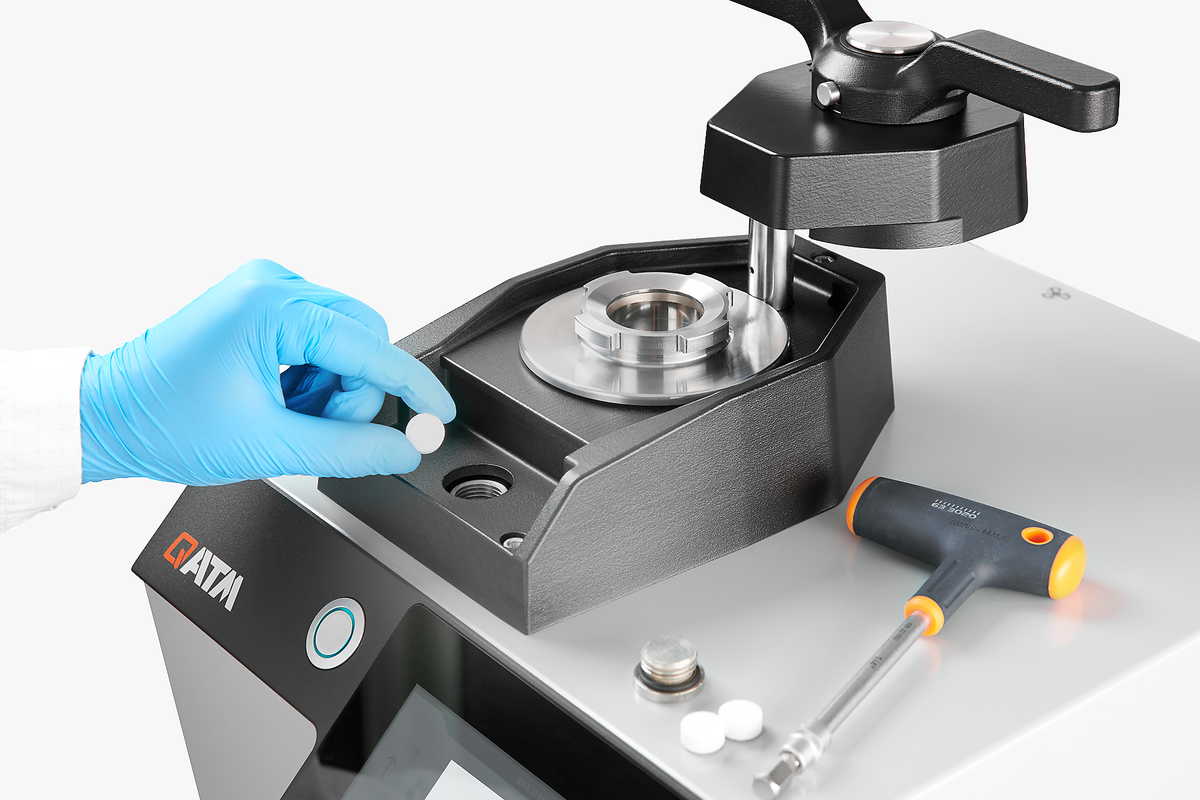

The suction nozzle attached to the back of the machine is removable, making cleaning very convenient. The mould and the two plungers can be removed for cleaning in just a few simple steps.

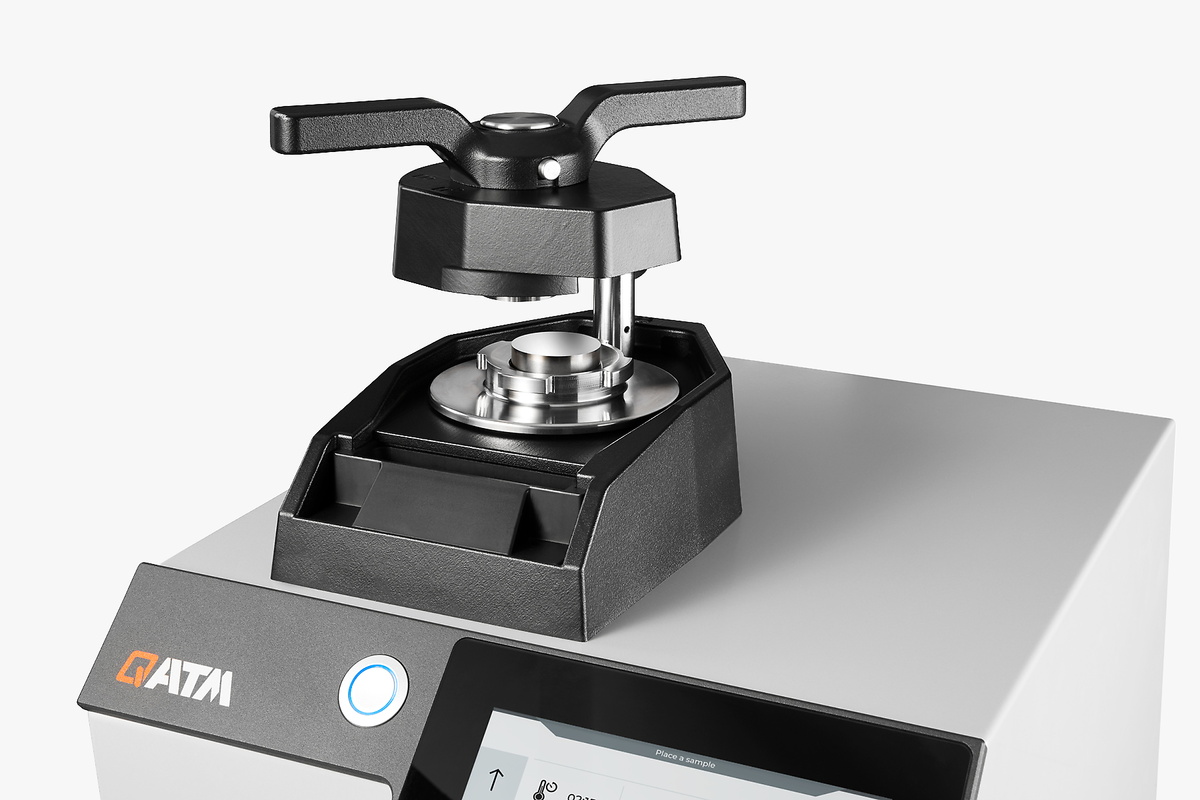

The tall press cylinder allows two samples to be mounted on top of each other simultaneously. This saves valuable mounting time and doubles sample throughput. Additionally, this mounting method is particularly time- and energy-efficient.

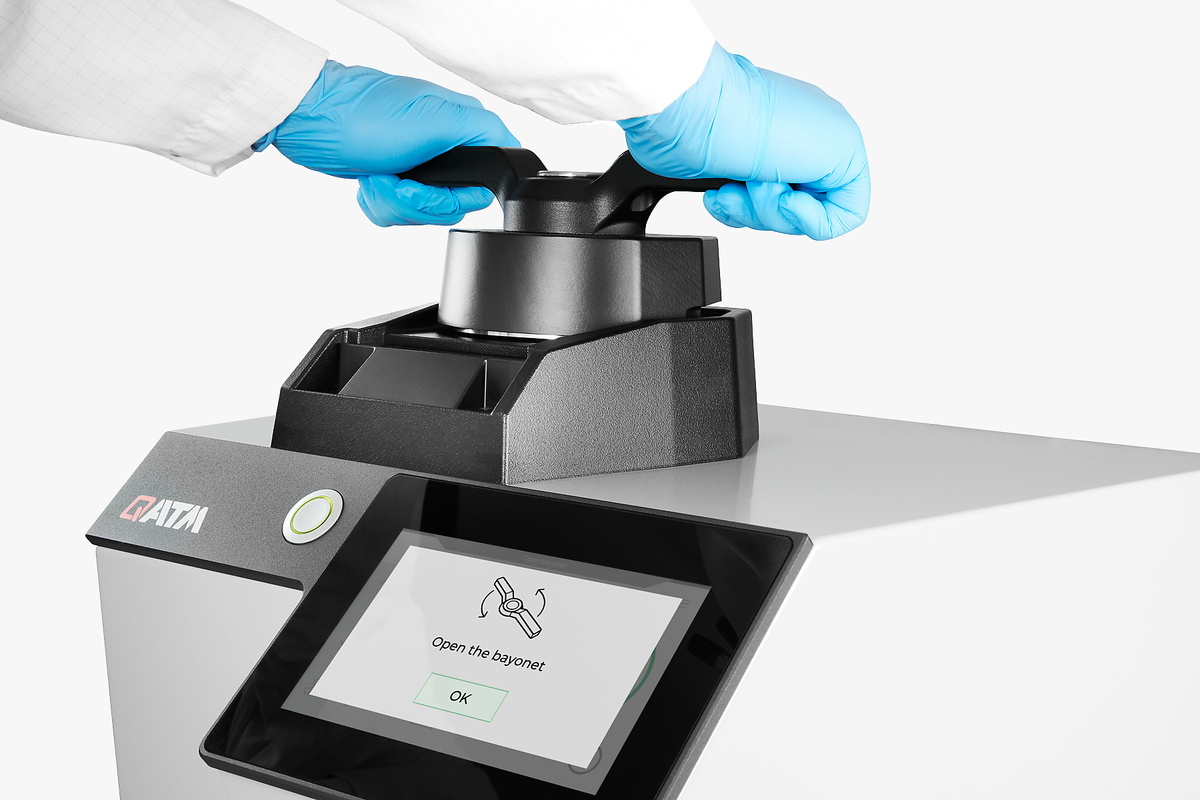

The robust and ergonomic bayonet closure fits comfortably in the hand and allows quick and easy opening and closing of the press cylinder.

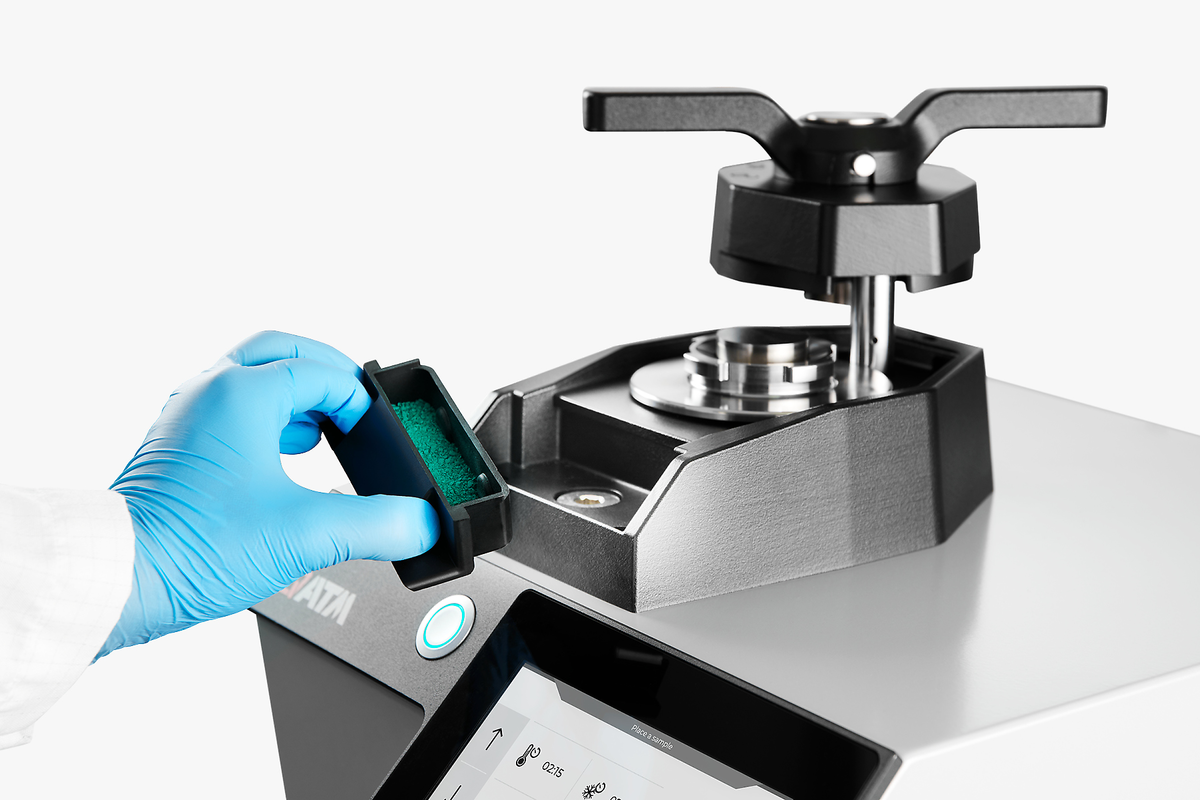

The machine includes a granule compartment for easy pick-up and disposal of excess mounting granules.
The Qpress 40 software is available in two variants. The standard Go software allows for quick setting of process parameters and starting of the mounting process.
The Plus software variant offers additional features such as a method database, butler function, and automatic control of extraction.The Plus software also includes the 2-step mode for sensitive samples. You can upgrade to Advanced Software Plus at any time.
| GO (Standard Software) |
PLUS (Advanced Software) |
||
| Speed-optimized temperature control | ✔ | ✔ | |
| Possibility of double mounting | ✔ | ✔ | |
| User account control | ✔ | ✔ | |
| Status bar | ✔ | ✔ | |
| Adjustable cooling capacity | ✔ | ✔ | |
| Automatic descaling function | ✔ | ✔ | 1 | Butler function (simple one-button operation) | ✖ | ✔ |
| 2 | Dust Guard: Extraction of fine dust (controlled via software) | ✖ | ✔ |
| 3 | Method database (saving and loading programs) | ✖ | ✔ |
| 4 | 2-Step Mode (for sensitive samples) | ✖ | ✔ |

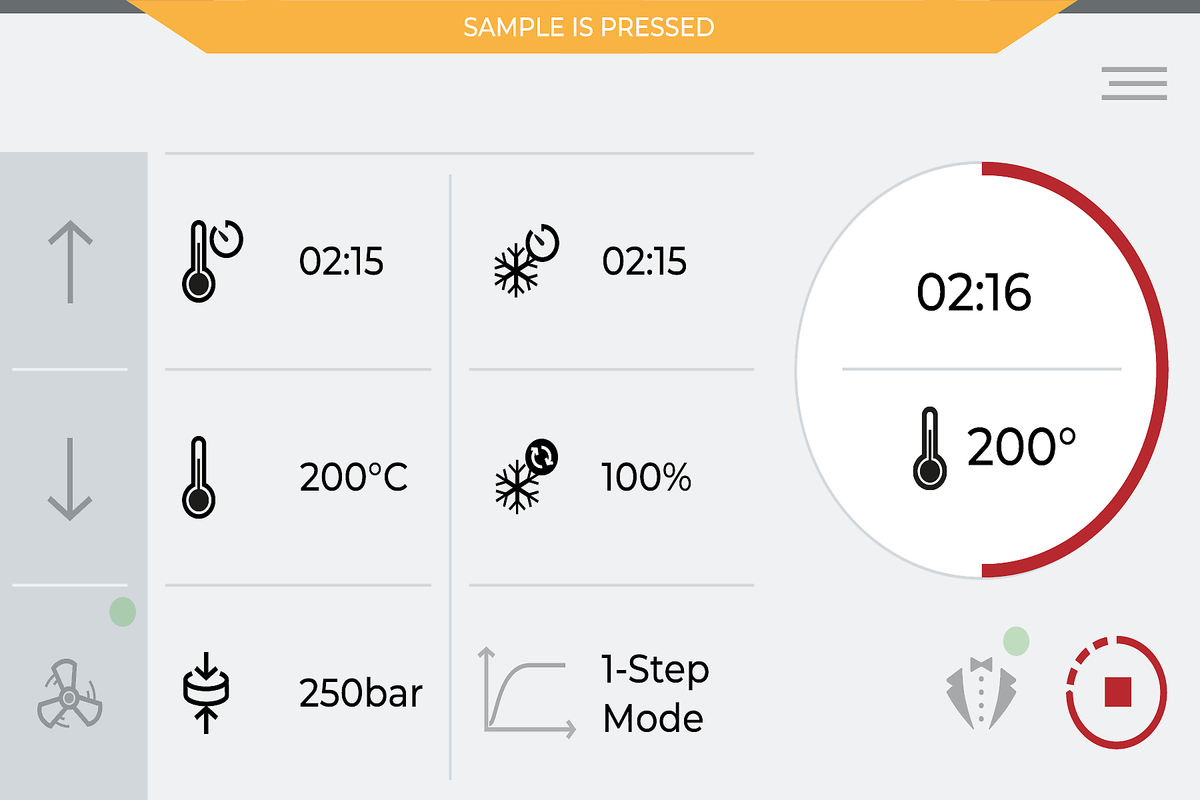

The intuitive software with a modern interface displays all important mounting parameters on the robust 7" industrial touch panel. Here, you can set the heating and cooling times, desired cooling capacity, temperature, and press mould pressure. Additionally, the software displays the current status of the hot mounting press. User Account Control allows settings to be write-protected.

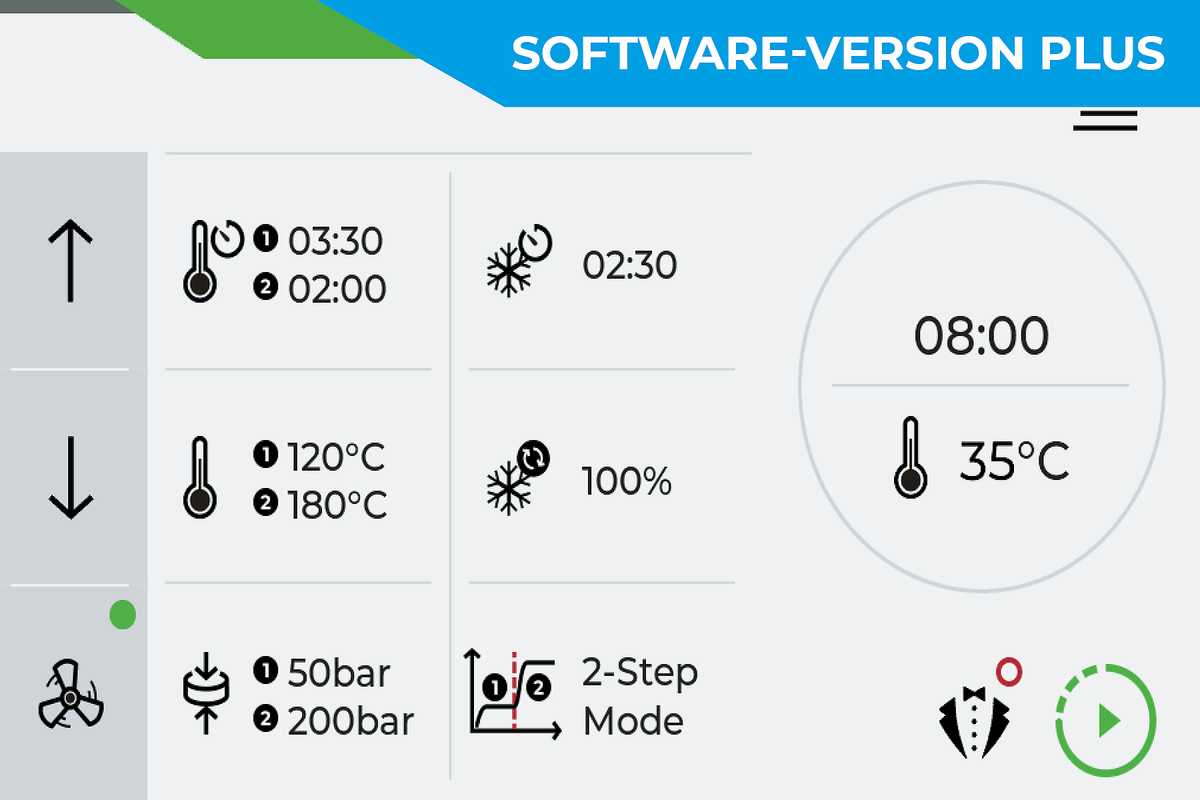

For sensitive samples (sheets, thin-walled pipes, coated materials), a 2-step mode can be activated permitting independent control of temperature and pressure. For example, in the first stage, the mounting resin melts at low press chamber pressure. In the second stage, full pressure is applied for compaction, providing maximum protection for the sample.
The machine features an automatic descaling function. Simply insert a descaling tablet and select the software function to start the descaling process.

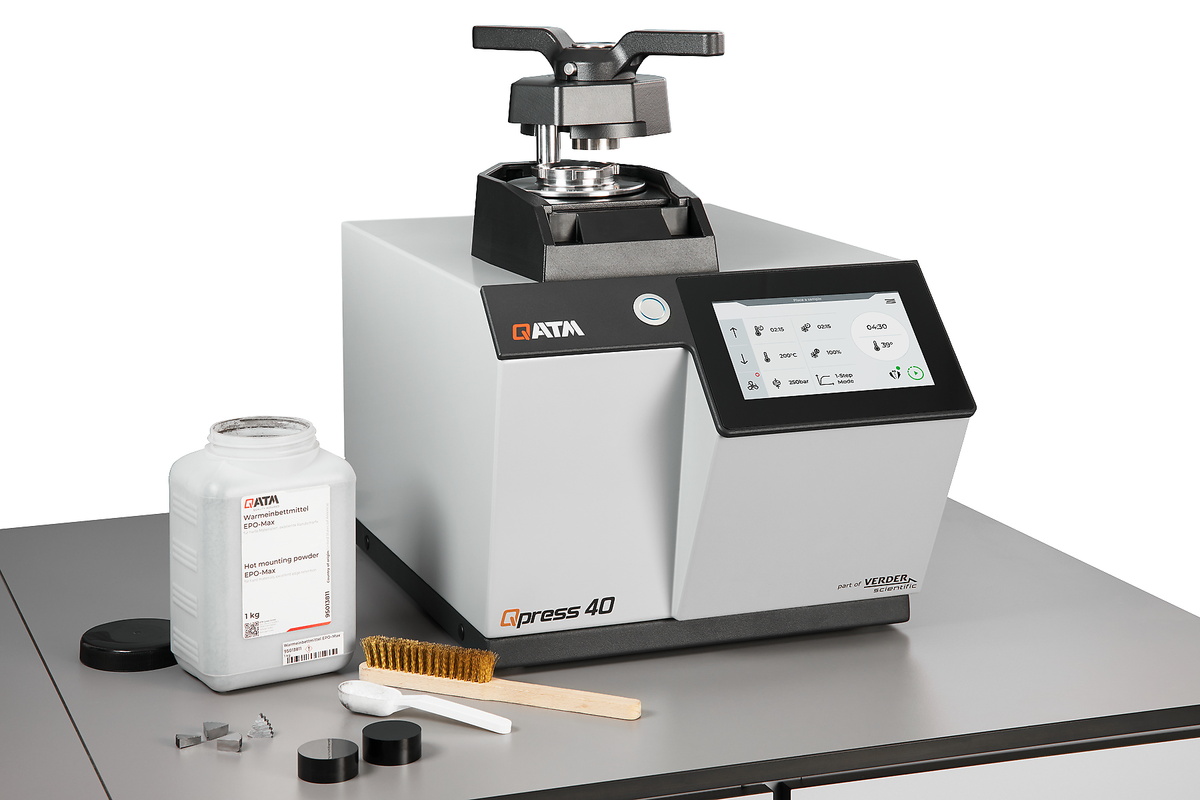

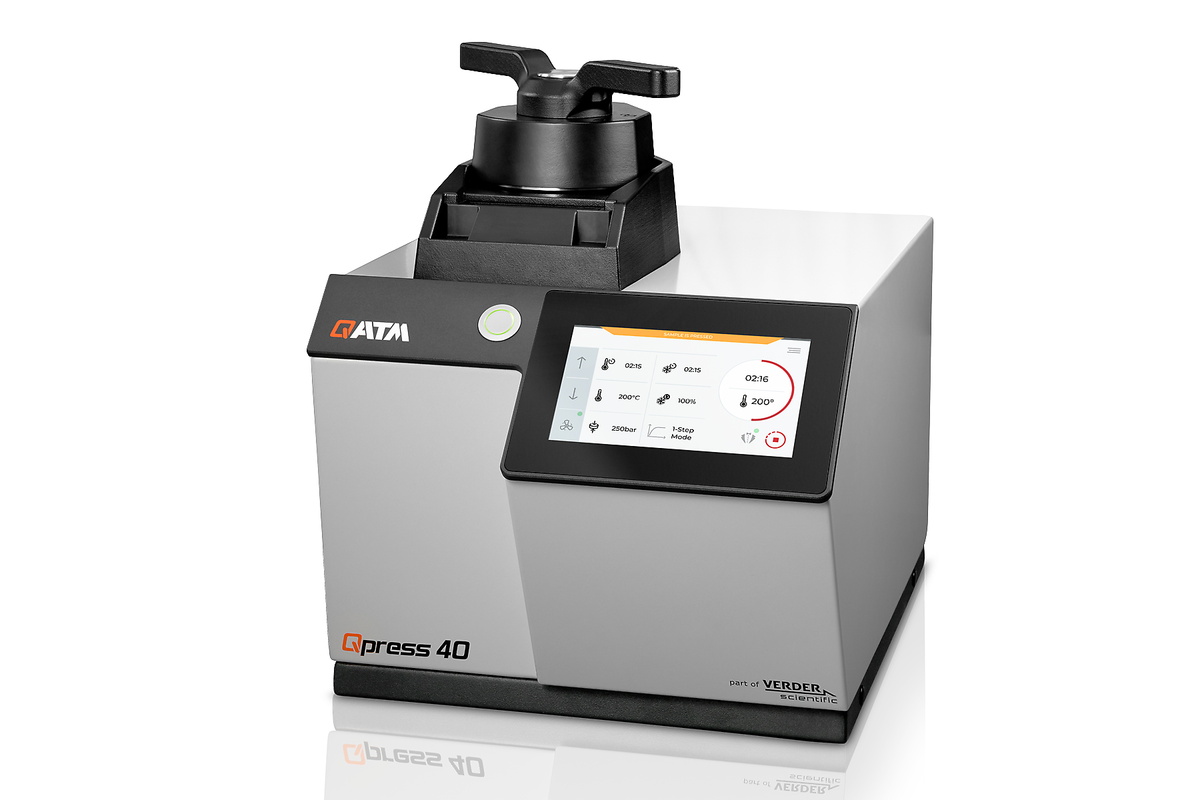

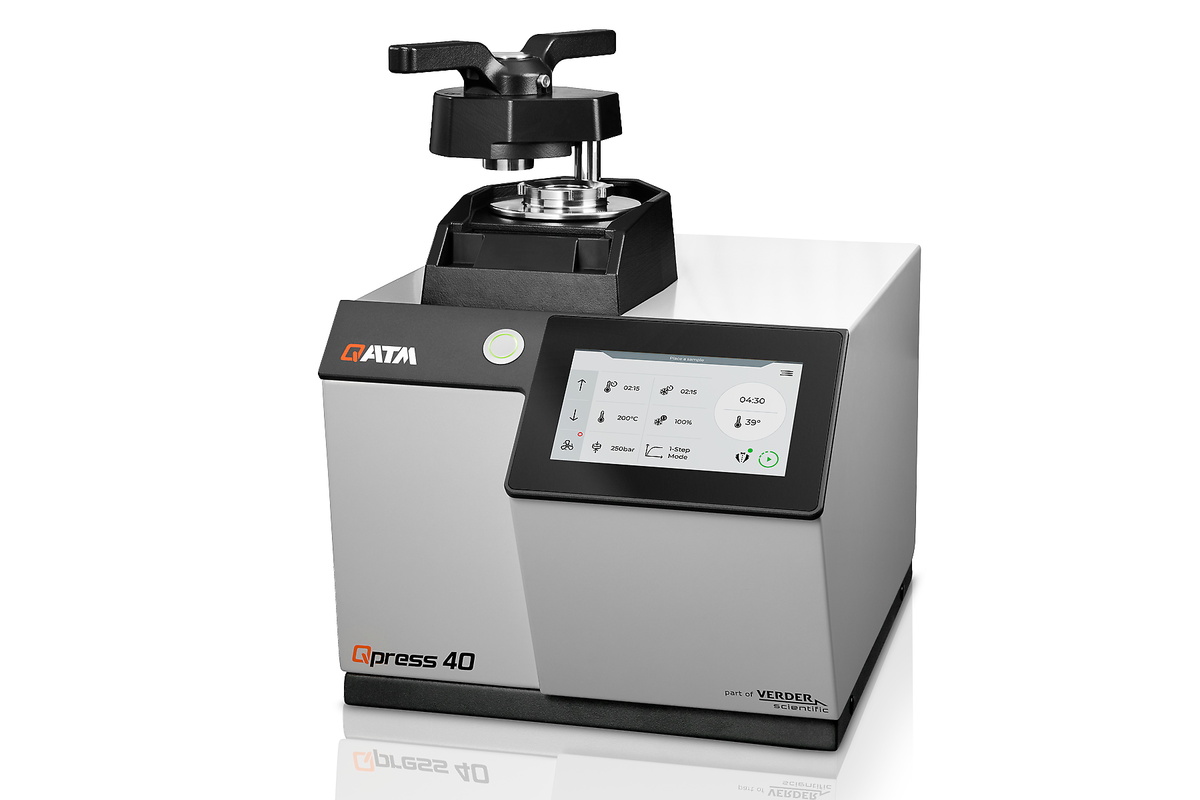

The new Qpress 40 hot mounting press has been developed to meet the increasing demands for precision, efficiency and user-friendliness. The Qpress 40 is characterized by innovative features that not only optimize work processes, but also improve the quality of the results.
1. Speed-optimized heating / cooling technology
2. Intuitive one-button operation
3. Tall press cylinder for double mounting
4. Robust quick closure
5. Extraction of fine dust
6. Clear process control
Easily interchangeable moulds are available with or without chamfer in these sizes: Ø 25 mm, Ø 30 mm, Ø 40 mm, Ø 1", Ø 11/4", Ø 11/2".
The optional extraction device allows for direct dust extraction when filling the mounting resin. It also enables easy cleaning of the machine with a removable suction hose. The extraction system can connect to up to two mounting machines and is controlled via the Qpress 40 software. It includes a replaceable vacuum cleaner bag and an additional fine dust filter.
L'inglobamento è più affidabile, più sicuro e più efficiente se eseguito con l'attrezzatura giusta: La conoscenza, la cura e la scelta corretta dei consumabili e delle attrezzature sono fondamentali per questo processo.
| Mould Ø (metric) | Ø 25 mm, Ø 30 mm, Ø 40 mm |
| Mould Ø (inch) | Ø 1", Ø 1 1/4", Ø 1 1/2" |
| Max. pressure in mould cylinder Ø 40 mm / Ø 1.5" | 250 bar |
| Max. pressure in mould cylinder < Ø 40 mm | 350 bar |
| Adjustable temperature | 20 - 200°C |
| Drive power (hydraulics) | 0.36 kW |
| Heating capacity | 1.6 kW |
| Connected load | 2.0 kW |
| Heating time (adjustable) | 0 - 30 min; in 15 s steps |
| Cooling time (adjustable) | 0 - 30 min; in 15 s steps |

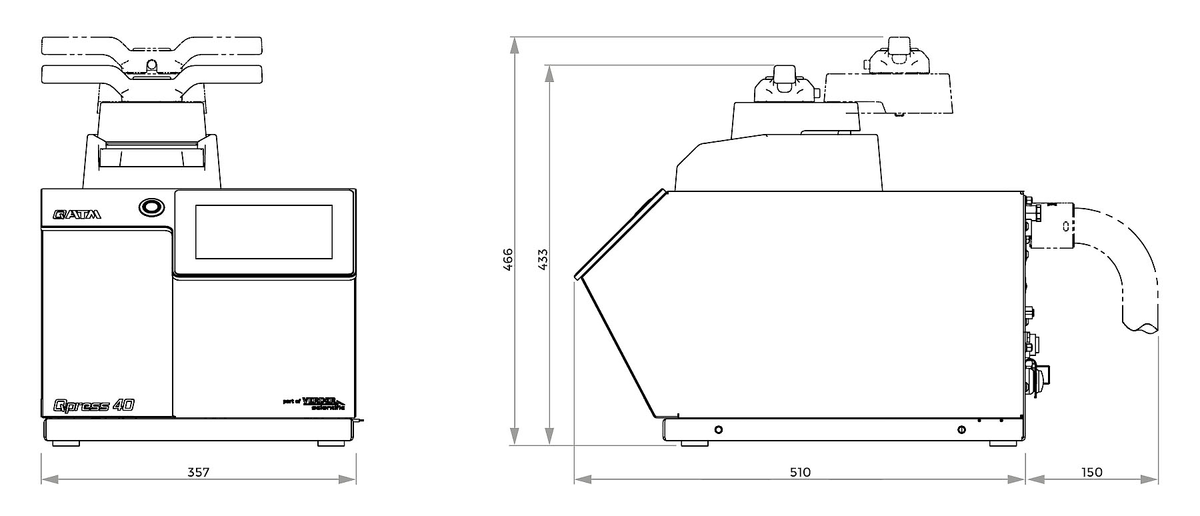

| Dimensioni (LxAxP) | ~ 365 x 433 x 538mm |
| Peso | ~ 41 kg |
Soggetto a modifiche tecniche ed errori
