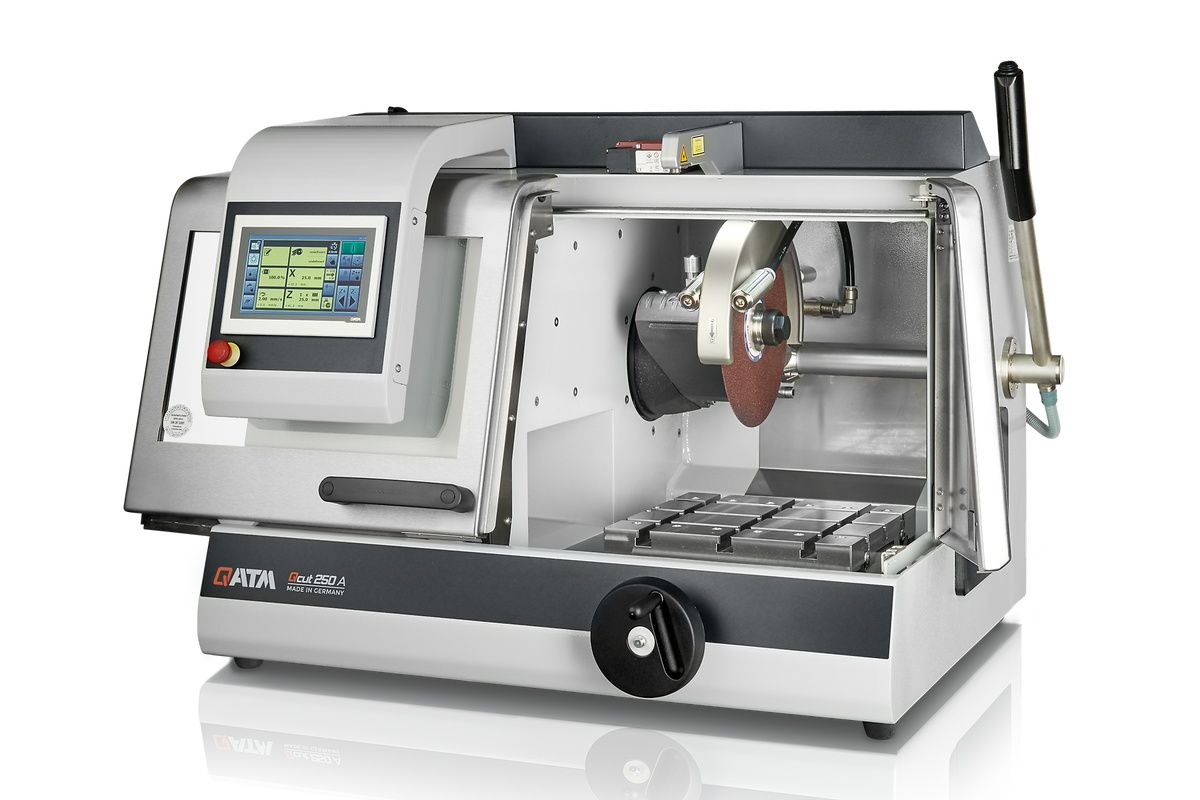

The Qcut 250 A is a compact and flexible semi-automatic abrasive cut-off machine with a 254 mm / 10“ cut-off wheel for workpieces or samples up to Ø 95 mm. This machine combines the benefits and speed of a manual cut-off machine with the advantages of an automatic abrasive cutter.

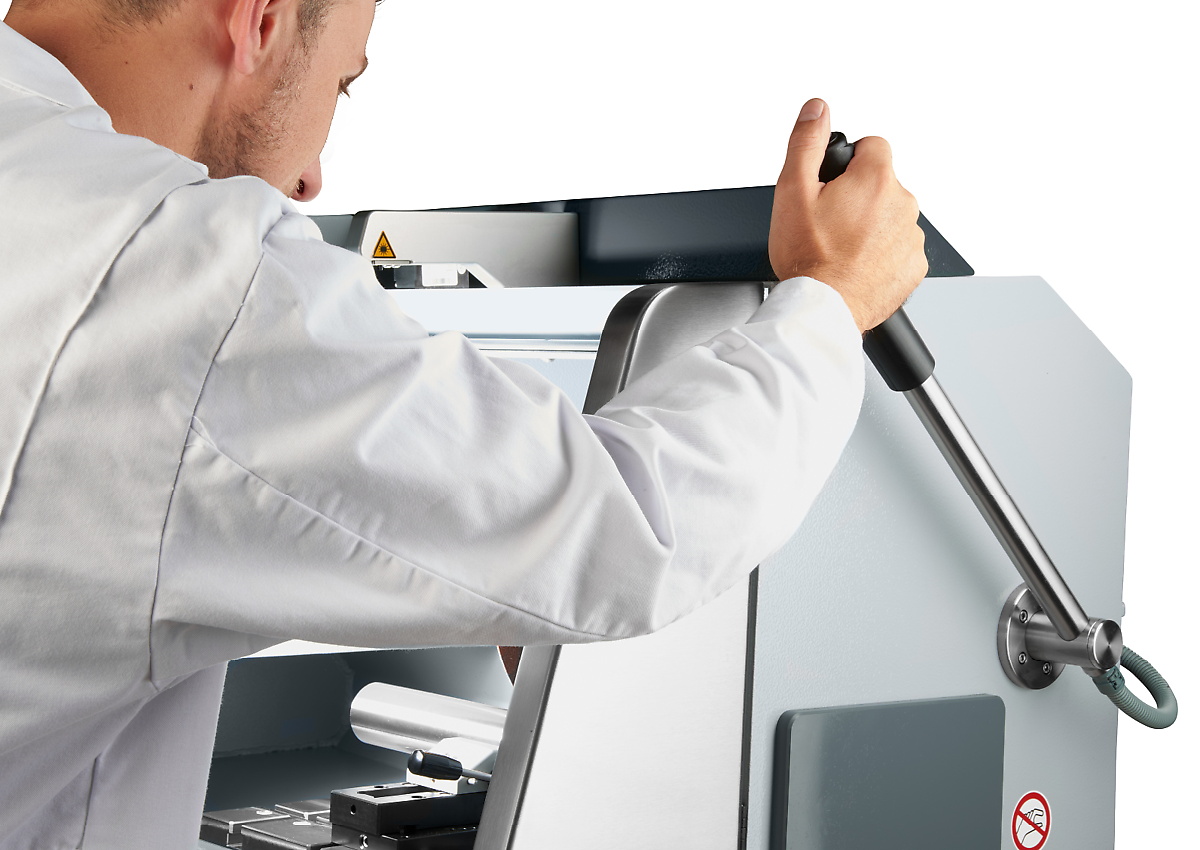

The semi-automatic Qcut 250 A, equipped with a hand lever and automatic lever brake, can be operated with one hand and makes vertical cuts or the positioning of the cut-off wheel easier than before. The cutting table with T-slots is made of stainless steel and can be used either with a dynamic automatic drive (allows pulsed cut) or in manual mode, operated by a hand wheel (traverse cut). Together with the well-proven QATM technology of pulsed cutting, the Qcut 250 A provides excellent cutting results even with the most difficult materials. And having an automatic X-axis allows the Care-Cut (oscillation cut) during a chop cut for large pieces.
For more complex cutting tasks, the Qcut 250 A can be equipped with an optional automatic cross table to perform serial cuts. Axes are monitored by travel measuring during set up and operation.
With the manual cutting movement, the cutting force is regulated through a set of gears. The cut is thereby yerk-free and more precise. The easy-to-use lever brake fixes the cutting disc in any position.

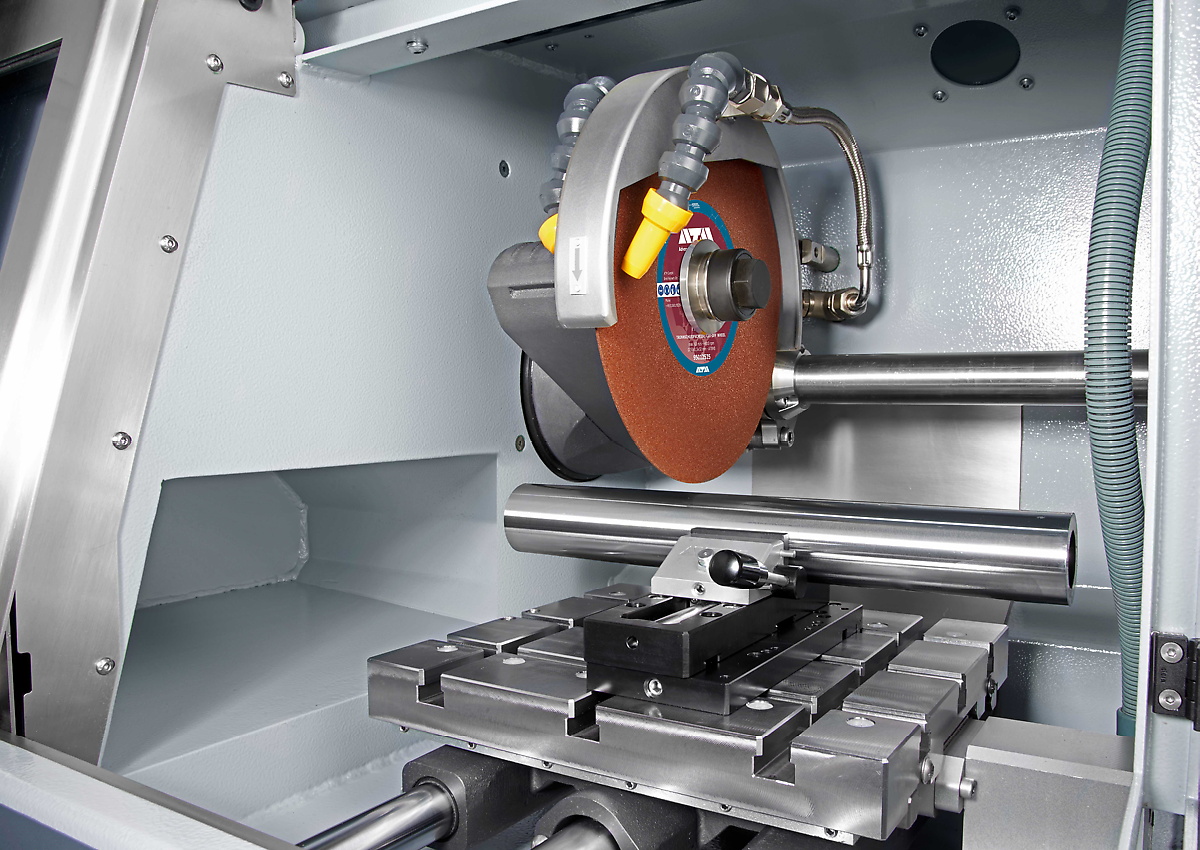

The manual horizontal or automatic movement allows cutting long parts longitudinally and easy positioning of the sample below the cut-off wheel. In pulsed cutting mode the sample material is cut particularly gently.
The new control software with integrated, extensive maintenance menu makes the operation simple and comfortable.
The automatic Z-axis can be adjusted with 0.1 mm precision for parallel cuts.
Il taglio è più affidabile, sicuro ed efficiente quando viene eseguito con gli ingredienti giusti: conoscenza, cura e la giusta scelta di consumabili e strumenti.

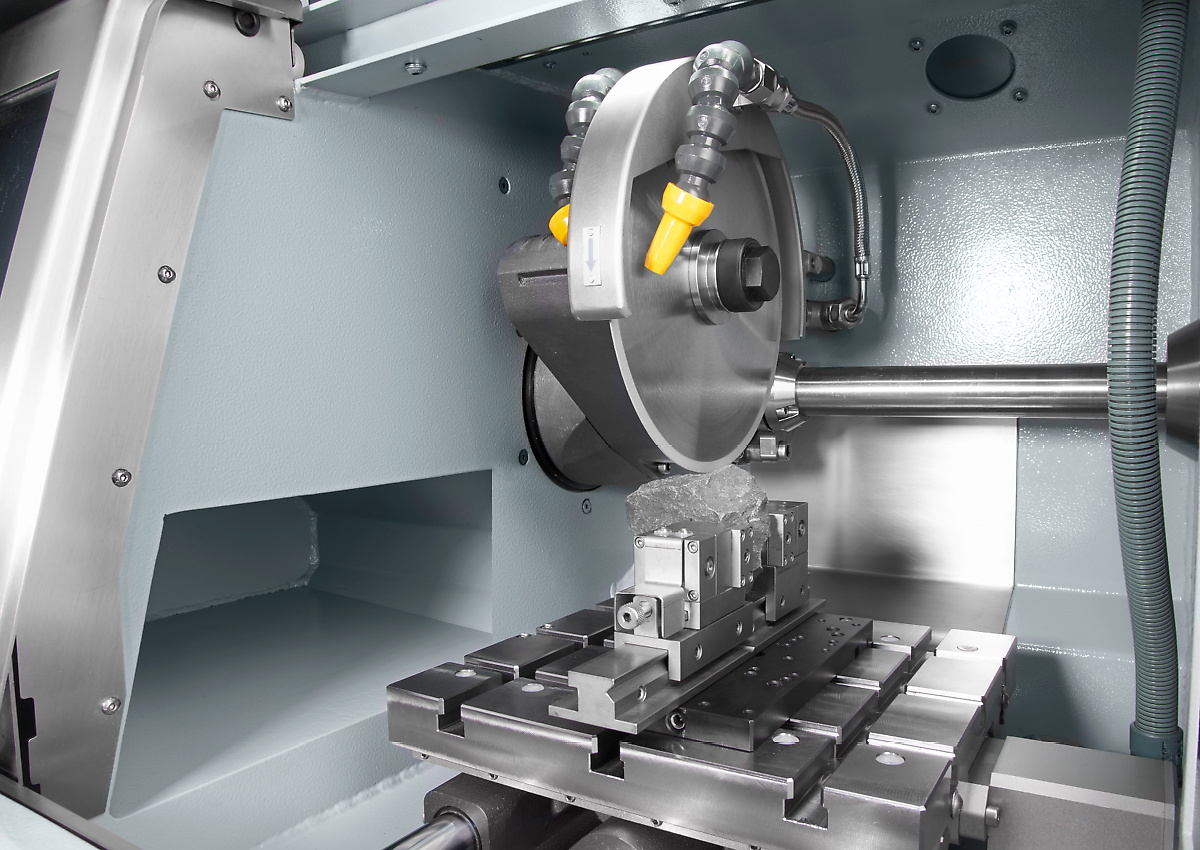

I nostri innovativi dispositivi di serraggio servono a bloccare i pezzi in modo sicuro e preciso per garantire processi di taglio e sezionamento precisi. Esiste un'ampia gamma di dispositivi di serraggio sviluppati per specifiche applicazioni e dimensioni.
| Mola da taglio | fino a 254 mm / 10'' |
| Capacità di taglio max. | ø 95 mm |
| Asse X automatico e manuale | 225 mm |
| Asse-Y manuale | 170 mm |
| Asse-Z automatico (opzionale) | 120 mm |
| Asse Z di precisione | 0.1 mm |
| Piano di taglio senza asse-Z WxD | 380 x 270 mm |
| Piano di taglio con asse-Z WxD | 300 x 270 mm |
| Slot T | 12 mm |
| Alimentazione | 5.5 kVA |
| Potenza Motore (principale) | 3 kW, S1; 4 kW, S3/60% |
| Velocità | 3015 rpm a 50Hz e 3100 rpm a 60Hz |
| W x H x D | 925 x 676 x 756 mm |
| Peso (in base alla configurazione) | ~ 130 kg |
Soggetto a modifiche tecniche ed errori
